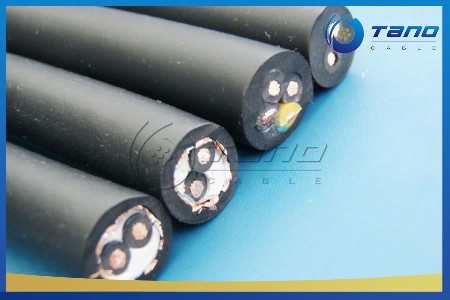

APPLICATION of H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cable
H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cable, with a parallel EPDM tube, joined with a textile braid, are used especially for electric steam generator irons (named usually “vaporellas”). H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cables are suitable for the stripping force on automatic machines and for low temperature environments.
STANDARD of H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cable
HD 22.12, DIN VDE 0282-12

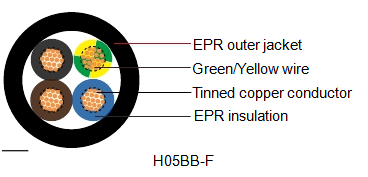

CONSTRUCTION of H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cable
Bare/Tinned copper strand conductor
acc. to DIN VDE 0295 class 5. IEC 60228 class 5
Insulation: EPR rubber type E17
Color coded to VDE 0293-308(3 conductors and above with yellow/green wire)
Sheath: EPR rubber type EM6
Sheath color: normally black
TECHNICAL CHARACTERISTICS of H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cable
Working voltage: H05BB-F: 300/500V
H07BB-F: 450/750V
Test voltage: H05BB-F: 2000V
H07BB-F: 2500V
Flexing bending radius: 4 × Ø
Static bending radius: 3 × Ø
Operating temperature: H05BB-F: - 40℃- + 60℃
H07BB-F: - 25℃- + 90℃
Short circuit temperature: 250℃
Flame retardant: VDE 0482-332-1-2/IEC 60332-1
TECHNICAL PARAMETER of H05BB-F / H07BB-F EPR Jacket EPR Insulation Rubber Cable
|
AWG |
No. of Cores x |
Nominal |
Nominal |
Nominal Overall |
Nominal |
|
Nominal Cross |
Thickness |
Thickness |
Diameter |
Weight |
|
|
Sectional Area |
of Insulation |
of Sheath |
|
|
|
|
No. x mm² |
mm |
mm |
mm |
kg/km |
|
|
H05BB-F |
|||||
|
18(24/32) |
2x0.75 |
0.6 |
0.8 |
6.3 |
53 |
|
17(32/32) |
2x1 |
0.6 |
0.9 |
6.8 |
64 |
|
16(30/30) |
2x1.5 |
0.8 |
1 |
8.3 |
95 |
|
14(30/50) |
2x2.5 |
0.9 |
1.1 |
9.8 |
140 |
|
18(24/32) |
3x0.75 |
0.6 |
0.9 |
6.8 |
65 |
|
17(32/32) |
3x1 |
0.6 |
0.9 |
7.2 |
77 |
|
16(30/30) |
3x1.5 |
0.8 |
1 |
8.8 |
115 |
|
14(30/50) |
3x2.5 |
0.9 |
1.1 |
10.4 |
170 |
|
12(56/28) |
3x4 |
1 |
1.2 |
12.2 |
240 |
|
10(84/28) |
3x6 |
1 |
1.4 |
13.6 |
320 |
|
18(24/32) |
4x0.75 |
0.6 |
0.9 |
7.4 |
80 |
|
17(32/32) |
4x1 |
0.6 |
0.9 |
7.8 |
95 |
|
16(30/30) |
4x1.5 |
0.8 |
1.1 |
9.8 |
145 |
|
14(30/50) |
4x2.5 |
0.9 |
1.2 |
11.5 |
210 |
|
12(56/28) |
4x4 |
1 |
1.3 |
13.5 |
300 |
|
10(84/28) |
4x6 |
1 |
1.5 |
15.4 |
405 |
|
18(24/32) |
5x0.75 |
0.6 |
1 |
8.3 |
100 |
|
17(32/32) |
5x1 |
0.6 |
1 |
8.7 |
115 |
|
16(30/30) |
5x1.5 |
0.8 |
1.1 |
10.7 |
170 |
|
14(30/50) |
5x2.5 |
0.9 |
1.3 |
12.8 |
255 |
|
H07BB-F |
|||||
|
17(32/32) |
2×1 |
0.8 |
1.3 |
8.2 |
89 |
|
16(30/30) |
2×1.5 |
0.8 |
1.5 |
9.1 |
113 |
|
14(30/50) |
2×2.5 |
0.9 |
1.7 |
10.85 |
165 |
|
17(32/32) |
3×1 |
0.8 |
1.4 |
8.9 |
108 |
|
16(30/30) |
3×1.5 |
0.8 |
1.6 |
9.8 |
138 |
|
14(30/50) |
3×2.5 |
0.9 |
1.8 |
11.65 |
202 |
|
17(32/32) |
4×1 |
0.8 |
1.5 |
9.8 |
134 |
|
16(30/30) |
4×1.5 |
0.8 |
1.7 |
10.85 |
171 |
|
14(30/50) |
4×2.5 |
0.9 |
1.9 |
12.8 |
248 |
|
17(32/32) |
5×1 |
0.8 |
1.6 |
10.8 |
172 |
|
16(30/30) |
5×1.5 |
0.8 |
1.8 |
11.9 |
218 |
