APPLICATION of H07RN-F Harmonized Rubber Insulated Flexible Cable
H07RN-F Harmonized Rubber Insulated Flexible Cables are designed to provide high flexibility and have the capacity to withstand weather, oils/ greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold environments and severe industrial environments. Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts. These cables are resistant to flame, acids, and oil penetration.
STANDARD of H07RN-F Harmonized Rubber Insulated Flexible Cable
HD22.4 S3, VDE-0282 Part-4, IEC 60245-4, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

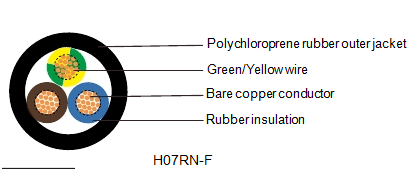

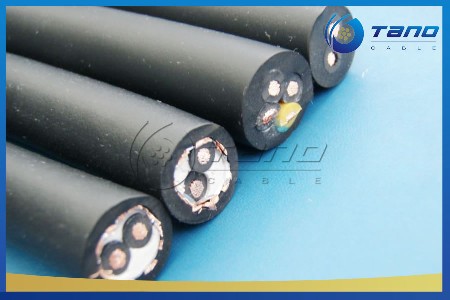

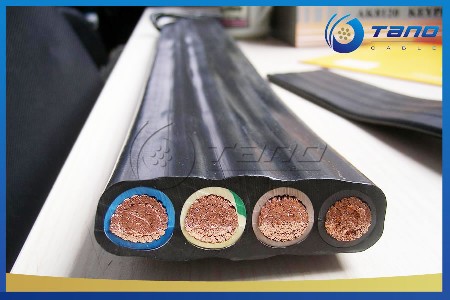

CONSTRUCTION of H07RN-F Harmonized Rubber Insulated Flexible Cable
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber core insulation EI4 to VDE-0282 Part-1
Color code VDE-0293-308 and HD 186
Green-yellow grounding, 3 conductors and above
Polychloroprene rubber (neoprene) jacket EM2
TECHNICAL CHARACTERISTICS of H07RN-F Harmonized Rubber Insulated Flexible Cable
Working voltage: 450/750 volts
Test voltage: 2500 volts
Flexing bending radius: 6 x Ø
Fixed bending radius: 4.0 x Ø
Flexing Temperature: -25º C to +60º C
Fixed Temperature: -40º C to +60º C
Short circuit temperature: +200 º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
TECHNICAL PARAMETER of H07RN-F Harmonized Rubber Insulated Flexible Cable
|
AWG |
No. of Cores x |
Nominal |
Nominal |
Nominal Overall |
Nominal |
Nominal |
|
Nominal Cross |
Thickness |
Thickness |
Diameter |
Copper |
Weight |
|
|
Sectional Area |
of Insulation |
of Sheath |
mm (min-max) |
Weight |
|
|
|
No. x mm² |
mm |
mm |
|
kg/km |
kg/km |
|
|
17(32/32) |
2x1 |
0.8 |
1.3 |
7.7-10 |
19 |
89 |
|
17(32/32) |
3x1 |
0.8 |
1.4 |
8.3-10.7 |
29 |
111 |
|
17(32/32) |
4x1 |
0.8 |
1.5 |
9.2-11.9 |
38 |
146 |
|
16(30/30) |
1 x 1.5 |
0.8 |
1.4 |
5.7-7.1 |
14.4 |
59 |
|
16(30/30) |
2 x 1.5 |
0.8 |
1.5 |
8.5-11.0 |
29 |
135 |
|
16(30/30) |
3 x 1.5 |
0.8 |
1.6 |
9.2-11.9 |
43 |
165 |
|
16(30/30) |
4 x 1.5 |
0.8 |
1.7 |
10.2-13.1 |
58 |
200 |
|
16(30/30) |
5 x 1.5 |
0.8 |
1.8 |
11.2-14.4 |
72 |
240 |
|
16(30/30) |
7 x 1.5 |
0.8 |
2.6 |
14.5-17.5 |
101 |
385 |
|
16(30/30) |
12 x 1.5 |
0.8 |
2.9 |
17.6-22.4 |
173 |
516 |
|
16(30/30) |
19 x 1.5 |
0.8 |
3.2 |
20.7-26.3 |
274 |
800 |
|
16(30/30) |
24 x 1.5 |
0.8 |
3.5 |
24.3-30.7 |
346 |
882 |
|
14(50/30) |
1 x 2.5 |
0.9 |
1.4 |
6.3-7.9 |
24 |
72 |
|
14(50/30) |
2 x 2.5 |
0.9 |
1.7 |
10.2-13.1 |
48 |
195 |
|
14(50/30) |
3 x 2.5 |
0.9 |
1.8 |
10.9-14.0 |
72 |
235 |
|
14(50/30) |
4 x 2.5 |
0.9 |
1.9 |
12.1-15.5 |
96 |
290 |
|
14(50/30) |
5 x 2.5 |
0.9 |
2 |
13.3-17.0 |
120 |
345 |
|
14(50/30) |
7 x 2.5 |
0.9 |
2.8 |
16.5-20.0 |
168 |
520 |
|
14(50/30) |
12 x 2.5 |
0.9 |
3.1 |
20.6-26.2 |
288 |
810 |
|
14(50/30) |
19 x 2.5 |
0.9 |
3.5 |
25.5-31.0 |
456 |
1200 |
|
14(50/30) |
24 x 2.5 |
0.9 |
3.9 |
28.8-36.4 |
576 |
1650 |
|
12(56/28) |
1x4 |
1 |
1.5 |
7.2-9.0 |
38 |
99 |
|
12(56/28) |
2x4 |
1 |
1.8 |
11.8-15.1 |
77 |
270 |
|
12(56/28) |
3x4 |
1 |
1.9 |
12.7-16.2 |
115 |
320 |
|
12(56/28) |
4x4 |
1 |
2 |
14.0-17.9 |
154 |
395 |
|
12(56/28) |
5x4 |
1 |
2.2 |
15.6-19.9 |
192 |
485 |
|
12(56/28) |
7x4 |
1 |
3.1 |
18.2-21.8 |
269 |
681 |
|
10(84/28) |
1x6 |
1 |
1.6 |
7.9-9.8 |
58 |
130 |
|
10(84/28) |
3x6 |
1 |
2.1 |
14.1-18.0 |
173 |
495 |
|
10(84/28) |
4x6 |
1 |
2.3 |
15.7-20.0 |
230 |
610 |
|
10(84/28) |
5x6 |
1.2 |
3.6 |
17.5-22.2 |
288 |
760 |
|
8(80/26) |
1 x 10 |
1.2 |
1.8 |
9.5-11.9 |
96 |
230 |
|
8(80/26) |
3 x 10 |
1.2 |
3.3 |
19.1-24.2 |
288 |
880 |
|
8(80/26) |
4 x 10 |
1.2 |
3.4 |
20.9-26.5 |
384 |
1060 |
|
8(80/26) |
5 x 10 |
1.2 |
3.6 |
22.9-29.1 |
480 |
1300 |
|
6(128/26) |
1 x 16 |
1.2 |
1.9 |
10.8-13.4 |
154 |
320 |
|
6(128/26) |
3 x 16 |
1.2 |
3.5 |
21.8-27.6 |
461 |
1090 |
|
6(128/26) |
4 x 16 |
1.2 |
3.6 |
23.8-30.1 |
614 |
1345 |
|
6(128/26) |
5 x 16 |
1.2 |
3.9 |
26.4-33.3 |
768 |
1680 |
|
4(200/26) |
1 x25 |
1.4 |
2 |
12.7-15.8 |
240 |
450 |
|
4(200/26) |
4 x 25 |
1.4 |
4.1 |
28.9-36.6 |
960 |
1995 |
|
4(200/26) |
5 x 25 |
1.4 |
4.4 |
32.0-40.4 |
1200 |
2470 |
|
2(280/26) |
1 x 35 |
1.4 |
2.2 |
14.3-17.9 |
336 |
605 |
|
2(280/26) |
3 x 35 |
1.4 |
4.1 |
29.3-37.1 |
1008 |
1900 |
|
2(280/26) |
4 x 35 |
1.4 |
4.4 |
32.5-41.1 |
1344 |
2645 |
|
2(280/26) |
5 x 35 |
1.4 |
4.7 |
37.0-45.0 |
1680 |
2810 |
|
1(400/26) |
1 x 50 |
1.6 |
2.4 |
16.5-20.6 |
480 |
825 |
|
1(400/26) |
4 x 50 |
1.6 |
4.8 |
37.7-47.5 |
1920 |
3635 |
|
1(400/26) |
5 x 50 |
1.6 |
5.1 |
40.0-50.8 |
2400 |
4050 |
|
2/0(356/24) |
1 x 70 |
1.6 |
2.6 |
18.6-23.3 |
672 |
1090 |
|
2/0(356/24) |
4 x 70 |
1.6 |
5.2 |
42.7-54.0 |
2688 |
4830 |
|
3/0(485/24) |
1 x 95 |
1.8 |
2.8 |
20.8-26.0 |
912 |
1405 |
|
3/0(485/24) |
4 x 95 |
1.8 |
5.9 |
48.4-61.0 |
3648 |
6320 |
|
4/0(614/24) |
1 x 120 |
1.8 |
3 |
22.8-28.6 |
1152 |
1746 |
|
4/0(614/24) |
4 x 120 |
1.8 |
6 |
53.0-66.0 |
4608 |
6830 |
|
300MCM(765/24) |
1 x 150 |
2 |
3.2 |
25.2-31.4 |
1440 |
1887 |
|
300MCM(765/24) |
4 x 150 |
2 |
6.4 |
58.0-73.0 |
5760 |
8320 |
|
350MCM(944/24) |
1 x 185 |
2.2 |
3.4 |
27.6-34.4 |
1776 |
2274 |
|
350MCM(944/24) |
4 x185 |
2.2 |
6.8 |
64.0-80.0 |
7104 |
9800 |
|
500MCM(1221/24) |
1 x 240 |
2.4 |
3.5 |
30.6-38.3 |
23.4 |
2956 |
|
500MCM(1221/24) |
4 x 240 |
2.4 |
7 |
72.0-90.0 |
9216 |
12100 |
|
- |
1 x 300 |
2.6 |
3.6 |
33.5-41.9 |
2880 |
3479 |
