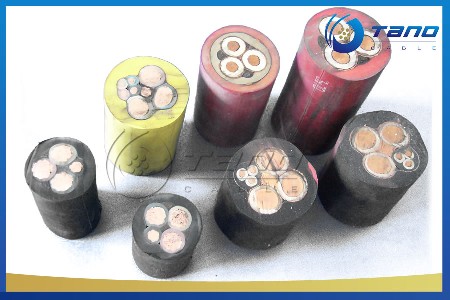

TANO CABLE 638TQ Rubber Jacket EPR Cable are can be used either in dry, humid or wet places, in contact with oil or grease, in weather conditions and under medium mechanical stress, They are suitable for power supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such as drilling machines, disk saws, portable engines and machines, building and farming equipments etc. These cables are also suitable for stationary equipments designed for wind-tower application. The particular cable construction and the special sheath materials have improved the cable torsion resistance (max150°/m), which is a key requirement for drop cables in wind-generators. The cables are also suitable on plaster in temporary buildings and builders huts, and wiring in machinery elevators. 638TQ is equivalent to harmonized code H07BN4-F.

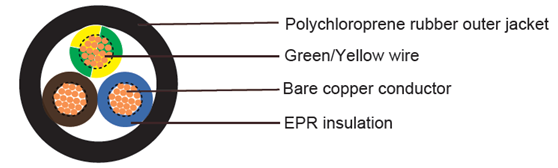

CONSTRUCTION of TANO CABLE 638TQ EPR Cable Rubber Jacket
Fine bare copper strands
Stranding to BS 6360 CL-5 or IEC 60228 CL-5
EPR(Ethylene Propylene Rubber) rubber EI7 insulation
CSP(Chlorosulphonated Polyethylene) outer jacket EM7
CORE IDENTIFICATION of TANO CABLE 638TQ EPR Cable Rubber Jacket
1 core: Black
2 cores: Brown, Blue
3 cores: Green/Yellow, Brown, Blue
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Green/Yellow, Blue, Brown, Black, Grey
6 cores and above: white insulation with black numerals
TECHNICAL DATA of TANO CABLE 638TQ EPR Cable Rubber Jacket
Working voltage: 450/750 volts
Test voltage: 2500 volts
Flexing bending radius: 6xOverall diameter
Fixed bending radius: 4xOverall diameter
Temperature Range: -25º C to +90º C
Maximum short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
CONSTRUCTION PARAMETER of TANO CABLE 638TQ EPR Cable Rubber Jacket
|
AWG (No of Strands/ Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal Thickness of Insulation |
Nominal Thickness of Sheath |
Nominal Overall Diameter |
Nominal Weight |
|
|
No.xmm2 |
mm |
mm |
mm |
kg/km |
|
6382TQ |
|||||
|
17(32/32) |
2x1 |
0.8 |
1.3 |
8.2 |
93 |
|
16(30/30) |
2x1.5 |
0.8 |
1.5 |
9.3 |
118 |
|
14(50/30) |
2x2.5 |
0.9 |
1.7 |
10.9 |
172 |
|
12(56/28) |
2x4 |
1 |
1.8 |
13.2 |
275 |
|
10(84/28) |
2x6 |
1 |
2 |
15.6 |
370 |
|
8(80/26) |
2x10 |
1.2 |
3.1 |
20.6 |
690 |
|
6(128/26) |
2x16 |
1.2 |
3.3 |
23.3 |
910 |
|
4(200/26) |
2x25 |
1.4 |
3.6 |
27.4 |
1290 |
|
6383TQ |
|||||
|
17(32/32) |
3x1 |
0.8 |
1.4 |
8.9 |
114 |
|
16(30/30) |
3x1.5 |
0.8 |
1.6 |
10 |
144 |
|
14(50/30) |
3x2.5 |
0.9 |
1.8 |
11.7 |
210 |
|
12(56/28) |
3x4 |
1 |
1.9 |
14.1 |
335 |
|
10(84/28) |
3x6 |
1 |
2.1 |
16.6 |
450 |
|
8(80/26) |
3x10 |
1.2 |
3.3 |
22.1 |
835 |
|
6(128/26) |
3x16 |
1.2 |
3.5 |
24.8 |
1120 |
|
4(200/26) |
3x25 |
1.4 |
3.8 |
29.3 |
1600 |
|
2(280/26) |
3x35 |
1.4 |
4.1 |
32.9 |
2080 |
|
1(400/26) |
3x50 |
1.6 |
4.5 |
38.5 |
2890 |
|
2/0(356/24) |
3x70 |
1.6 |
4.8 |
43.6 |
3850 |
|
3/0(485/24) |
3x95 |
1.8 |
5.3 |
50 |
4970 |
|
4/0(614/24) |
3x120 |
1.8 |
5.6 |
53.9 |
6350 |
|
300MCM(765/24) |
3x150 |
2 |
6 |
59.5 |
7700 |
|
350MCM(944/24) |
3x185 |
2.2 |
6.4 |
65.9 |
9350 |
|
500MCM(1225/24) |
3x240 |
2.4 |
7.1 |
74.7 |
1200 |
|
-63.54166667 |
3x300 |
2.6 |
7.7 |
83.2 |
14910 |
|
6384TQ |
|||||
|
17(32/32) |
4x1 |
0.8 |
1.5 |
9.8 |
139 |
|
16(30/30) |
4x1.5 |
0.8 |
1.7 |
11 |
177 |
|
14(50/30) |
4x2.5 |
0.9 |
1.9 |
12.8 |
257 |
|
12(56/28) |
4x4 |
1 |
2 |
15.5 |
420 |
|
10(84/28) |
4x6 |
1 |
2.3 |
18.5 |
565 |
|
8(80/26) |
4x10 |
1.2 |
3.4 |
24.1 |
1020 |
|
6(128/26) |
4x16 |
1.2 |
3.6 |
27.1 |
1380 |
|
4(200/26) |
4x25 |
1.4 |
4.1 |
32.5 |
2140 |
|
2(280/26) |
4x35 |
1.4 |
4.4 |
36.5 |
2610 |
|
1(400/26) |
4x50 |
1.6 |
4.8 |
42.6 |
3650 |
|
2/0(356/24) |
4x70 |
1.6 |
5.2 |
48.6 |
4880 |
|
3/0(485/24) |
4x95 |
1.8 |
5.9 |
56 |
6390 |
|
4/0(614/24) |
4x120 |
1.8 |
6 |
59.9 |
7750 |
|
8(80/26) |
4x10 |
1.2 |
3.4 |
24.1 |
1020 |
|
6(128/26) |
4x16 |
1.2 |
3.6 |
27.1 |
1380 |
|
4(200/26) |
4x25 |
1.4 |
4.1 |
32.5 |
2140 |
|
2(280/26) |
4x35 |
1.4 |
4.4 |
36.5 |
2610 |
|
1(400/26) |
4x50 |
1.6 |
4.8 |
42.6 |
3650 |
|
2/0(356/24) |
4x70 |
1.6 |
5.2 |
48.6 |
4880 |
|
3/0(485/24) |
4x95 |
1.8 |
5.9 |
56 |
6390 |
|
4/0(614/24) |
4x120 |
1.8 |
6 |
59.9 |
7750 |
|
300MCM(765/24) |
4x150 |
2 |
6.5 |
66.8 |
9780 |
|
350MCM(944/24) |
4x185 |
2.2 |
7 |
73.5 |
11900 |
|
500MCM(1225/24) |
4x240 |
2.4 |
7.7 |
83.2 |
15330 |
|
-63.54166667 |
4x300 |
2.6 |
8.4 |
92.8 |
19030 |
|
6386TQ |
|||||
|
16(30/30) |
6x1.5 |
0.8 |
2.5 |
14.7 |
288 |
|
14(50/30) |
6x2.5 |
0.9 |
2.7 |
17.1 |
395 |
|
12(56/28) |
6x4 |
1 |
2.9 |
20.2 |
670 |
|
6387TQ |
|||||
|
16(30/30) |
7x1.5 |
0.8 |
2.6 |
15.7 |
385 |
|
14(50/30) |
7x2.5 |
0.9 |
2.8 |
18.1 |
445 |
|
12(56/28) |
7x4 |
1 |
3.1 |
21.6 |
773 |
|
63812TQ |
|||||
|
16(30/30) |
12x1.5 |
0.8 |
2.9 |
19.1 |
556 |
|
14(50/30) |
12x2.5 |
0.9 |
3.1 |
22.2 |
760 |
|
12(56/28) |
12x4 |
1 |
3.5 |
20.2 |
1290 |
|
63818TQ |
|||||
|
16(30/30) |
18x1.5 |
0.8 |
2.5 |
14.7 |
814 |
|
14(50/30) |
18x2.5 |
0.9 |
2.7 |
17.1 |
1100 |
|
12(56/28) |
18x4 |
1 |
2.9 |
26.2 |
1910 |
|
63824TQ |
|||||
|
16(30/30) |
24x1.5 |
0.8 |
3.5 |
26.5 |
1080 |
|
14(50/30) |
24x2.5 |
0.9 |
3.9 |
31.3 |
1460 |
|
63836TQ |
|||||
|
16(30/30) |
36x1.5 |
0.8 |
3.8 |
30.2 |
1600 |
|
14(50/30) |
36x2.5 |
0.9 |
4.3 |
36.5 |
2150 |
