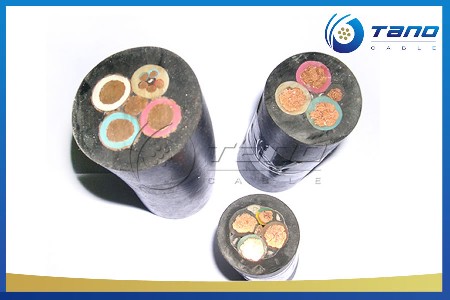

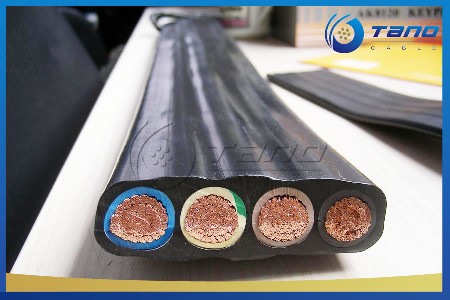

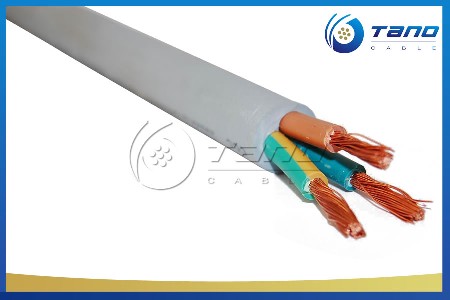

APPLICATION of EPR Insulation Rubber Cable 380TQ
EPR Insulation Rubber Cable 380TQ are designed for temporary building sites as extension leads for portable or fixed equipment. The copper braid prevents earth leakage and offers mechanical protection.

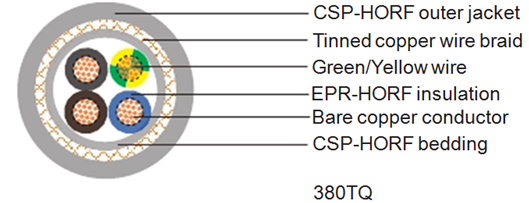

CONSTRUCTION of EPR Insulation Rubber Cable 380TQ
Fine bare copper strands
Stranding to BS 6360 CL-5 or IEC 60228 CL-5
EPR insulation
CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) bedding
TCWB(tinned copper wire braid)
CSP(Chlorosulphonated Polyethylene), HOFR (Heat and Oil Resistant and Flame Retardant) sheath
CORE IDENTIFICATION of EPR Insulation Rubber Cable 380TQ
2 cores: Brown, Blue
3 cores: Green/Yellow + Brown, Blue
4 cores: Green/Yellow, Brown, Black, Grey
5 cores: Green/Yellow, Blue, Brown, Black, Grey
6 cores and above: white insulation with black numerals
TECHNICAL DATA of EPR Insulation Rubber Cable 380TQ
Working voltage: 300/500 volts
Minimum bending radius: 8.0xOverall diameter
Temperature Range: -20º C to +85º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩxkm
CONSTRUCTION PARAMETER of EPR Insulation Rubber Cable 380TQ
|
AWG |
No. of Cores |
Nominal |
Nominal |
|
|
|
|
|
(No. of |
x Nominal |
Thickness |
Thickness |
Diameter |
Nominal |
Nominal |
Nominal |
|
Strands/ |
Cross |
of |
of |
of Braid |
Thickness |
Overall |
Weight |
|
Strand |
Sectional |
Insulation |
Bedding |
Wire |
of Sheath |
Diameter |
|
|
Diameter) |
Area |
|
|
|
|
|
|
|
|
No.xmm² |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
3802TQ |
|||||||
|
18(24/32) |
2*0.75 |
0.6 |
0.8 |
0.2 |
1.1 |
9.7 |
149 |
|
17(32/32) |
2*1 |
0.6 |
0.9 |
0.2 |
1.1 |
10.3 |
169 |
|
16(30/30) |
2*1.5 |
0.8 |
1 |
0.2 |
1.3 |
12.3 |
236 |
|
14(50/30) |
2*2.5 |
0.9 |
1.1 |
0.2 |
1.4 |
13.9 |
307 |
|
3803TQ |
|||||||
|
18(24/32) |
3*0.75 |
0.6 |
0.9 |
0.2 |
1.1 |
10.3 |
170 |
|
17(32/32) |
3*1 |
0.6 |
0.9 |
0.2 |
1.2 |
11 |
196 |
|
16(30/30) |
3*1.5 |
0.8 |
1.1 |
0.2 |
1.3 |
13.1 |
274 |
|
14(50/30) |
3*2.5 |
0.9 |
1.2 |
0.2 |
1.5 |
15 |
366 |
|
3804TQ |
|||||||
|
18(24/32) |
4*0.75 |
0.6 |
0.9 |
0.2 |
1.2 |
11.1 |
198 |
|
17(32/32) |
4*1 |
0.6 |
1 |
0.2 |
1.2 |
11.8 |
227 |
|
16(30/30) |
4*1.5 |
0.8 |
1.1 |
0.2 |
1.4 |
14.1 |
319 |
|
14(50/30) |
4*2.5 |
0.9 |
1.3 |
0.2 |
1.6 |
16.4 |
441 |
|
3805TQ |
|||||||
|
18(24/32) |
5*0.75 |
0.6 |
1 |
0.2 |
1.2 |
11.9 |
233 |
|
17(32/32) |
5*1 |
0.6 |
1 |
0.2 |
1.3 |
12.7 |
272 |
|
16(30/30) |
5*1.5 |
0.8 |
1.2 |
0.2 |
1.5 |
15.4 |
373 |
|
14(50/30) |
5*2.5 |
0.9 |
1.3 |
0.2 |
1.6 |
17.4 |
502 |
|
3806TQ |
|||||||
|
18(24/32) |
6*0.75 |
0.6 |
1.1 |
0.2 |
1.3 |
13.1 |
272 |
|
16(30/30) |
6*1.5 |
0.8 |
1.3 |
0.2 |
1.6 |
16.8 |
438 |
|
14(50/30) |
6*2.5 |
0.9 |
1.4 |
0.2 |
1.8 |
19.2 |
593 |
|
3808TQ |
|||||||
|
18(24/32) |
8*0.75 |
0.6 |
1.2 |
0.2 |
1.5 |
15.2 |
350 |
|
16(30/30) |
8*1.5 |
0.8 |
1.5 |
0.2 |
1.8 |
19.7 |
575 |
|
14(50/30) |
8*2.5 |
0.9 |
1.7 |
0.3 |
2.1 |
23.4 |
856 |
|
38012TQ |
|||||||
|
18(24/32) |
12*0.75 |
0.6 |
1.3 |
0.2 |
1.6 |
16.8 |
449 |
|
16(30/30) |
12*1.5 |
0.8 |
1.6 |
0.3 |
2 |
22.58 |
775 |
|
14(50/30) |
12*2.5 |
0.9 |
1.8 |
0.3 |
2.3 |
26 |
1060 |
|
38016TQ |
|||||||
|
18(24/32) |
16*0.75 |
0.6 |
1.4 |
0.2 |
1.7 |
18.5 |
544 |
|
16(30/30) |
16*1.5 |
0.8 |
1.8 |
0.3 |
2.2 |
25.3 |
1010 |
|
14(50/30) |
16*2.5 |
0.9 |
2 |
0.3 |
2.5 |
28.9 |
1330 |
|
38020TQ |
|||||||
|
18(24/32) |
20*0.75 |
0.6 |
1.5 |
0.3 |
1.9 |
21.2 |
713 |
|
16(30/30) |
20*1.5 |
0.8 |
2.1 |
0.3 |
2.6 |
30.8 |
1430 |
|
14(50/30) |
20*2.5 |
0.9 |
2.4 |
0.4 |
3 |
36.3 |
2140 |
|
38025TQ |
|||||||
|
18(24/32) |
25*0.75 |
0.6 |
1.7 |
0.3 |
2.1 |
23.6 |
866 |
|
16(30/30) |
25*1.5 |
0.8 |
2.1 |
0.3 |
2.6 |
30.8 |
1430 |
|
14(50/30) |
25*2.5 |
0.9 |
2.4 |
0.4 |
3 |
36.3 |
2140 |
|
38030TQ |
|||||||
|
18(24/32) |
30*0.75 |
0.6 |
1.8 |
0.3 |
2.2 |
25 |
986 |
|
16(30/30) |
30*1.5 |
0.8 |
2.2 |
0.4 |
2.8 |
33.2 |
1760 |
|
14(50/30) |
30*2.5 |
0.9 |
2.6 |
0.4 |
3.2 |
38.7 |
2440 |
