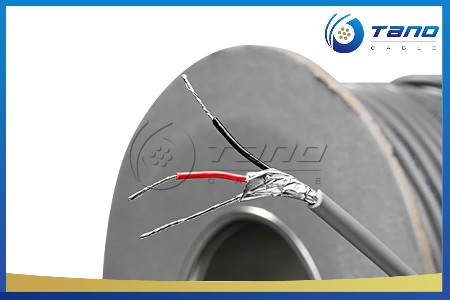

APPLICATION of LIYCY Control Cable VDE Standard
LIYCY Control Cable VDE Standard are suitable for flexible use with free movement, but without tensile stress or forced movements in dry wet and moist areas but are not suitable for open air application. LIYCY Control Cables are ideal whenever construction requirements call for minimal outer diameter such as areas of tool making, machine industry, eletrotechnics, computers, measuring and controlling technics. The extremely small outer diameter makes the cable also suitable for miniature plugs.
STANDARD of LIYCY Control Cable VDE Standard
VDE 0245, VDE 0812, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

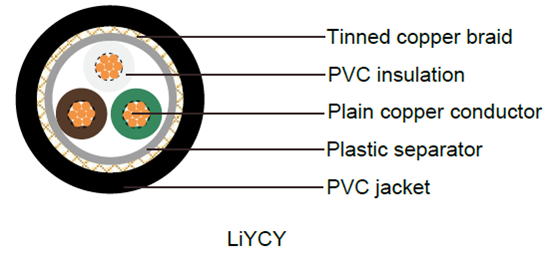

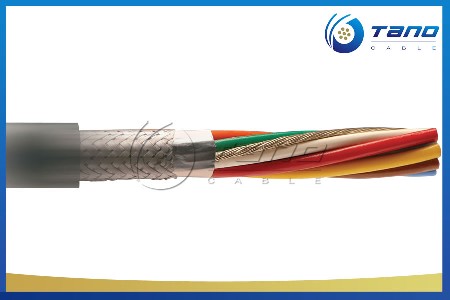

CONSTRUCTION of LIYCY Control Cable VDE Standard
Plain copper conductor
Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5 IEC 60228 cl.5
PVC core insulation to DIN VDE 0281 part 1
Color coded to DIN 47100, but without color repetition
Cores twisted into layers
Plastic foil separator
85% tinned copper braid
PVC outer jacket to DIN VDE 0281 part 1
TECHNICAL DATA of LIYCY Control Cable VDE Standard
Working voltage: 250 volts
Test voltage: 1200/1500 volts
Minimum bending radius: 10 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -40º C to +80º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
CONSTRUCTION PARAMETER of LIYCY Control Cable VDE Standard
|
AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal Overall Diameter |
Nominal Copper Weight |
Nominal Cable Weight |
|
No. x mm² |
mm |
kg/km |
kg/km |
|
|
26(18/38) |
2X0.14 |
3.9 |
12 |
20 |
|
26(18/38) |
3X0.14 |
4.1 |
13 |
28 |
|
26(18/38) |
4X0.14 |
4.3 |
14.3 |
33 |
|
26(18/38) |
5X0.14 |
4.6 |
15.5 |
38 |
|
26(18/38) |
6X0.14 |
4.8 |
22 |
38 |
|
26(18/38) |
7X0.14 |
4.9 |
19 |
49 |
|
26(18/38) |
8X0.14 |
5.3 |
21.2 |
56 |
|
26(18/38) |
10X0.14 |
5.9 |
28.5 |
66 |
|
26(18/38) |
12X0.14 |
6.3 |
30.4 |
78 |
|
26(18/38) |
14X0.14 |
6.5 |
32 |
80 |
|
26(18/38) |
15X0.14 |
6.7 |
37.8 |
86 |
|
26(18/38) |
16X0.14 |
6.8 |
43 |
90 |
|
26(18/38) |
18X0.14 |
7.1 |
48.8 |
104 |
|
26(18/38) |
20X0.14 |
7.6 |
53.9 |
116 |
|
26(18/38) |
21X0.14 |
7.7 |
55.5 |
121 |
|
26(18/38) |
25X0.14 |
8.5 |
63 |
149 |
|
26(18/38) |
28X0,14 |
8.5 |
66.1 |
153 |
|
26(18/38) |
30X0.14 |
8.7 |
69 |
158 |
|
26(18/38) |
32X0.14 |
9 |
73.6 |
164 |
|
26(18/38) |
36X0.14 |
9.3 |
83 |
183 |
|
26(18/38) |
40X0.14 |
9.7 |
87.5 |
210 |
|
26(18/38) |
44X0.14 |
10.3 |
110.5 |
225 |
|
26(18/38) |
50X0.14 |
11.1 |
122.5 |
253 |
|
24(14/34) |
2X0.25 |
4.5 |
16 |
32 |
|
24(14/34) |
3X0.25 |
4.7 |
21 |
37 |
|
24(14/34) |
4X0.25 |
5.1 |
24 |
41.3 |
|
24(14/34) |
5X0.25 |
5.4 |
29 |
51.2 |
|
24(14/34) |
6X0.25 |
5.8 |
30 |
58 |
|
24(14/34) |
7X0.25 |
5.8 |
37 |
65 |
|
24(14/34) |
8X0.25 |
6.5 |
42 |
73 |
|
24(14/34) |
10X0.25 |
7.5 |
46 |
82 |
|
24(14/34) |
12X0.25 |
7.7 |
59 |
145 |
|
24(14/34) |
14X0.25 |
8.1 |
59 |
99 |
|
24(14/34) |
15X0.25 |
8.4 |
61 |
111 |
|
24(14/34) |
16X0.25 |
8.4 |
64 |
124 |
|
24(14/34) |
18X0.25 |
8.8 |
83 |
143 |
|
24(14/34) |
20X0.25 |
9.1 |
88 |
152.3 |
|
24(14/34) |
21X0.25 |
9.3 |
93 |
161 |
|
24(14/34) |
25X0.25 |
10.3 |
114 |
172 |
|
24(14/34) |
28X0.25 |
10.8 |
126 |
181.1 |
|
24(14/34) |
30X0.25 |
11.1 |
132 |
189 |
|
24(14/34) |
32X0.25 |
11.4 |
138 |
203 |
|
24(14/34) |
36X0.25 |
11.8 |
148 |
220 |
|
24(14/34) |
40X0.25 |
12.3 |
157 |
248 |
|
24(14/34) |
44X0.25 |
13.3 |
165 |
292.1 |
|
24(14/34) |
50X0.25 |
13.9 |
178 |
318 |
|
24(14/34) |
61X0.25 |
14.6 |
205 |
365.2 |
|
22(7/30) |
2X0.34 |
4.9 |
21 |
37 |
|
22(7/30) |
3X0.34 |
5.1 |
27 |
49 |
|
22(7/30) |
4X0.34 |
5.5 |
33 |
59 |
|
22(7/30) |
5X0.34 |
6.2 |
36 |
66 |
|
22(7/30) |
6X0.34 |
6.8 |
36 |
64 |
|
22(7/30) |
7X0.34 |
6.8 |
46 |
83 |
|
22(7/30) |
8X0.34 |
7.3 |
52 |
94 |
|
22(7/30) |
10X0.34 |
8.3 |
74 |
129.2 |
|
22(7/30) |
12X0.34 |
8.5 |
80 |
142 |
|
22(7/30) |
14XO.34 |
8.9 |
86 |
154 |
|
22(7/30) |
15XO.34 |
9.2 |
90 |
155 |
|
22(7/30) |
16X0.34 |
9.4 |
94 |
160 |
|
22(7/30) |
18X0.34 |
9.8 |
103 |
173 |
|
22(7/30) |
20X0.34 |
10.2 |
112 |
192 |
|
22(7/30) |
21X0.34 |
10.3 |
116 |
199.2 |
|
22(7/30) |
25X0.34 |
11.9 |
135 |
259 |
|
22(7/30) |
28X0.34 |
12 |
153 |
280 |
|
22(7/30) |
30X0.34 |
12.3 |
159 |
291.1 |
|
22(7/30) |
32X0.34 |
13 |
165 |
305 |
|
22(7/30) |
36X0.34 |
13.4 |
179 |
331 |
|
22(7/30) |
40X0.34 |
13.9 |
200 |
365 |
|
22(7/30) |
44X0.34 |
14.9 |
215 |
314.2 |
|
22(7/30) |
50X0.34 |
15.9 |
235 |
431 |
|
20(16/32) |
2X0.5 |
5.5 |
29 |
54 |
|
20(16/32) |
3X0.5 |
5.8 |
38 |
67 |
|
20(16/32) |
4X0.5 |
6.5 |
43 |
77 |
|
20(16/32) |
5X0.5 |
7 |
51 |
90 |
|
20(16/32) |
6X0.5 |
7.8 |
59 |
104 |
|
20(16/32) |
7X0.5 |
7.8 |
65 |
112 |
|
20(16/32) |
8X0.5 |
8.3 |
70 |
135 |
|
20(16/32) |
10X0.5 |
9.5 |
88 |
160 |
|
20(16/32) |
12X0.5 |
9.8 |
99 |
177 |
|
20(16/32) |
18X0.5 |
11.8 |
134 |
239 |
|
20(16/32) |
20X0.5 |
12.2 |
149 |
276 |
|
20(16/32) |
25X0.5 |
14 |
211 |
352 |
|
20(16/32) |
30X0.5 |
14.5 |
230 |
397 |
|
18(24/32) |
2X0.75 |
5.9 |
38 |
64 |
|
18(24/32) |
3X0.75 |
6.4 |
49 |
76 |
|
18(24/32) |
4X0.75 |
7 |
58 |
92 |
|
18(24/32) |
5X0.75 |
7.8 |
67 |
109 |
|
18(24/32) |
7X0.75 |
8.4 |
100 |
156 |
|
18(24/32) |
10X0.75 |
10.3 |
130 |
187 |
|
18(24/32) |
12X0.75 |
11 |
154 |
218 |
|
18(24/32) |
18X0.75 |
13 |
195 |
327 |
|
18(24/32) |
25X0.75 |
15.6 |
280 |
454 |
|
18(24/32) |
30X0.75 |
16.2 |
312 |
486 |
|
17(32/32) |
2X1.0 |
6.5 |
43 |
72 |
|
17(32/32) |
3X1.0 |
6.9 |
56 |
90 |
|
17(32/32) |
4X1.0 |
7.6 |
68 |
109 |
|
17(32/32) |
5X1.0 |
8.3 |
79 |
126 |
|
17(32/32) |
7X1.0 |
9 |
118 |
171 |
|
17(32/32) |
10X1.0 |
11.5 |
140 |
228 |
|
17(32/32) |
12X1.0 |
11.9 |
168 |
259 |
|
17(32/32) |
18X1.0 |
14 |
252 |
389 |
|
17(32/32) |
25X1.0 |
16.7 |
335 |
517 |
|
16(30/30) |
2X1.5 |
7.6 |
58 |
90 |
|
16(30/30) |
3X1.5 |
8 |
74 |
115 |
|
16(30/30) |
4X1.5 |
8.7 |
108 |
153 |
|
16(30/30) |
5X1.5 |
9.5 |
129 |
176 |
|
16(30/30) |
7X1.5 |
10.3 |
164 |
220 |
|
16(30/30) |
12X1.5 |
13.9 |
254 |
376 |
|
16(30/30) |
18X1.5 |
16.6 |
350 |
519 |
|
16(30/30) |
25X1.5 |
20 |
550 |
901 |
